Air & Dirt Separator

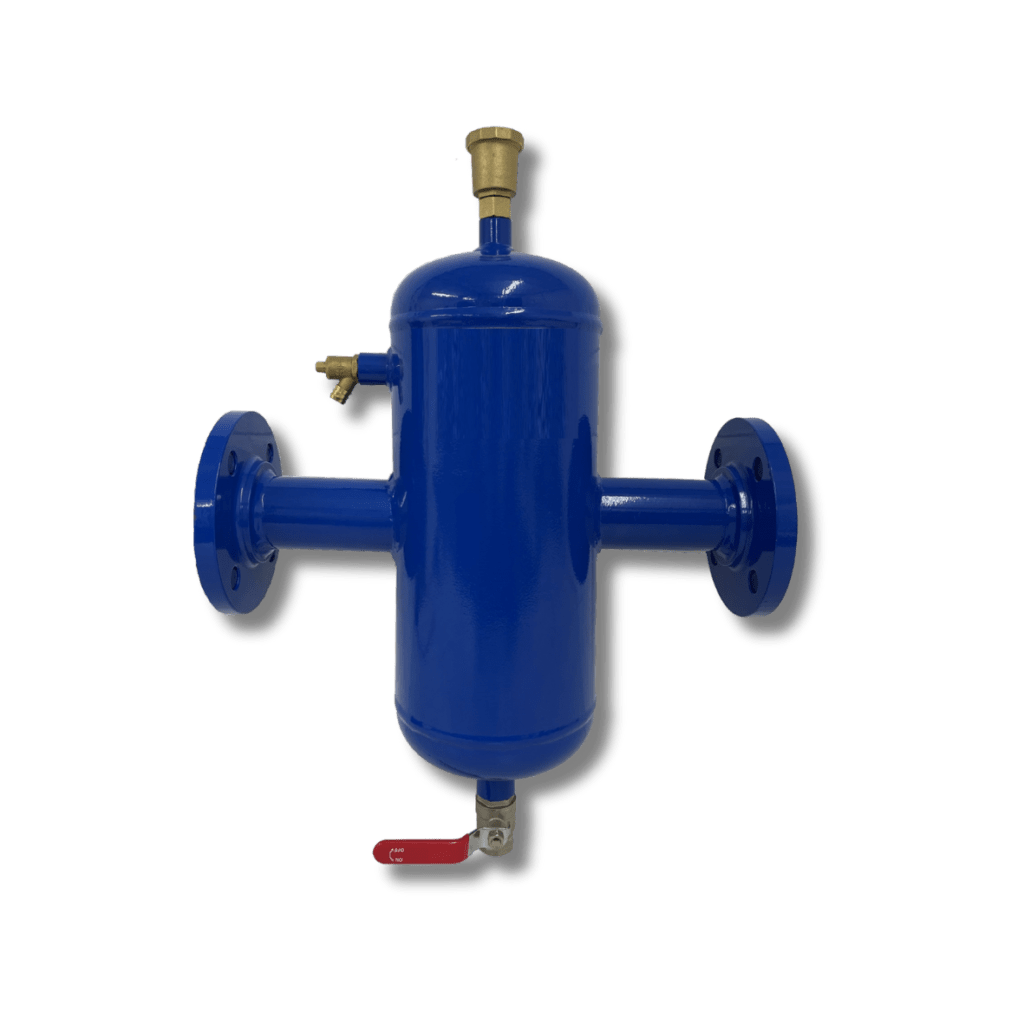

Flanged Microbubble Air & Dirt Separator

For use in sealed heating and cooling systems. CORE Air & Dirt Separators protect against damage caused by depositing dirt particles and large amounts of dissolved and undissolved air.

Advantages of using Air & Dirt Separators

  • Corrosion of pipe and fixings
  • Dependence on chemicals
  • Unwanted dirt build up in radiators, vessels & pipe
CORE Air & Dirt separators are essential when refurbishing older systems or when an open system is converted to a closed system.
  • Flanged connection EN 1092-1 PN16
  • Extremely low flow resistance
  • Flow Rate up to 1.5 m/s
  • 5 Year Warranty
  • Maximum working pressure: 10 bar
  • Mild steel body with stainless steel filament internals
  • Brass valves, automatic air vent & blow down valve
  • Suitable for systems with a maximum flow temperature of 1 10°C
  • Suitable for addition of glycol-based antifreeze up to 50%
  • In accordance with Pressure Equipment Directive 2014/68/EU Cat SEP and Pressure Equipment (Safety) Regulations 2016
